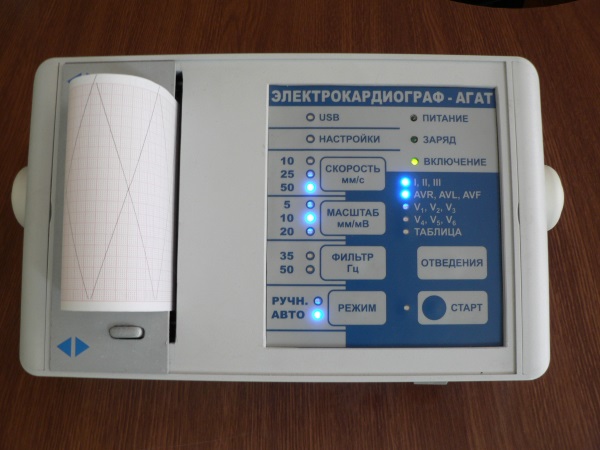

Autonomous microprocessor-based portable electrocardiograph AMPEKG-2

Autonomous microprocessor-based portable electrocardiograph AMPEKG-2

Autonomous microprocessor-based portable electrocardiograph AMPEKG-2
Полное описание

It is designed to record changes in the potential difference of a heart’ electric field in 12 standard leads synchronously in the conditions of various medical institutions and in providing emergency medical care.

Specifications:

  • Number of ADC digits 24
  • Common-mode signal rejection at least 120 Db
  • Range of input voltages (0,0015 – 10) mV
  • Max. electrode polarization voltage ± 300 mV
  • Digitization frequency per channel 2 kHz
  • Additional low-frequency filters 35/50 Hz
  • Input Impedance 10 MΩ
  • Sensitivity (scale) 5, 10, 20 mm/mV
  • Scanning-line frequency 10, 25, 50 mm/s
  • Synchronous registration up to 12 leads
  • Duration of the treated area with automatic
  • calculation of ECG signal parameters at least 12 s
  • Printout 3/6 leads
  • Thermal paper size 110 mm
  • Power supply 110-230V/± 12V/battery
  • Built-in Li-on battery capacity 2.4 A/h or 100 measurements
  • Overall dimensions (318х235х63) mm
  • Weight (with electrodes) not more than 1,5 kg
  • Interface with PC USB
  • ES class class II, type BF
