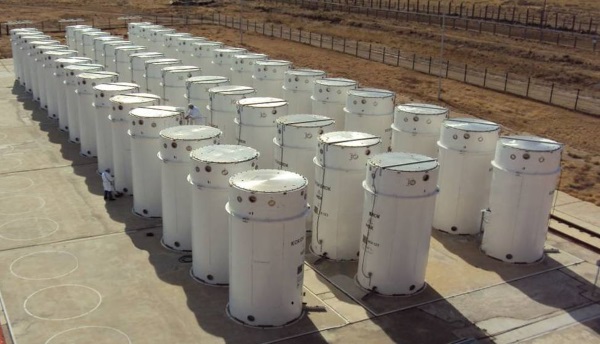

Containers for storage and transportation of SNF

Containers for storage and transportation of SNF

Containers for storage and transportation of SNF
Полное описание

At present nuclear industry uses a developed family of containers "COCON-BLOK" for storage and transportation of spent nuclear fuel (SNF) and for storage of solid radioactive waste. The transport packaging assembly includes an SNF storage package and a damping device for protecting it. The assembly includes a metal-concrete container, a spacing grid for SNF placement, ampoules or SNF covers.

The use of double-purpose concrete containers provides:

  • modularity and stage-by-stage organization of temporary storage facilities and the necessary set of containers as micro-storages;
  • possibility of sending SNF without reloading from the territory of temporary storage facilities to processing or disposal sites;
  • shortest terms for the construction of temporary solutions;
  • identification of contents of the container which was stored and moved through the control and accounting, ease of keeping the accounting and storage systems;
  • minimum degree of fuel degradation in dry conditions of storage and development of defects in spent or damaged fuel assemblies;
  • passive removal of residual heat from stored fuel;
  • low dose loads on personnel during SNF container loading / unloading operations and container operation;
  • reliable protection from environmental pollution;
  • absence of cooling water, which eliminates the leakage of radioactive water.

Specifications

Model

Характеристика

Transport storage assembly TUK-108/1

- diameter, mm – 1 850;

- height, mm – 4 600;

- weight with SNF, t, not more than – 40.

Transport storage assembly TUK-109

- TUK outer diameter, mm – 3 150;

- TUK height, mm – 6 200;

- TUK weight with fuel, t, not more than – 126;

- Quantity of fuel cells, pcs. – 144;

- UKH outer diameter, mm – 2 400;

- UKH height, mm – 5 125;

- UKH weight, t, not more than – 88;

- UKH weight with SNF, t, not more than – 101;

- UKH medium of internal cavity – inert gas.

Transport storage assembly TUK-120

- diameter, mm – 1 850;

- height, mm – 4 600;

- weight with fuel, t, not more than – 40 000;

- SNRFA capacity from 21 to 49.

- medium of internal cavity – air.

Transport storage assembly TUK-123

- TUK outer diameter, mm – 3 140;

- TUK length, mm – 6 230;

- TUK weight with fuel, t, not more than – 130;

- cover capacity – 8;

- UKH outer diameter, mm – 2 400;

- UKH height, mm – 5 125;

- UKH weight with fuel, t, not more than – 98,3

- UKH medium of internal cavity – inert gas.

Transport storage assembly TUK-146

- diameter, mm – 3 140;

- height, mm –7 150;

- weight with SNF, t, not more than – 150.

Packing storage assembly UKH-121

- diameter, mm – 2 400;

- height, mm – 3 815;

- weight capacity (with max weight of solid waste), t – 70.
