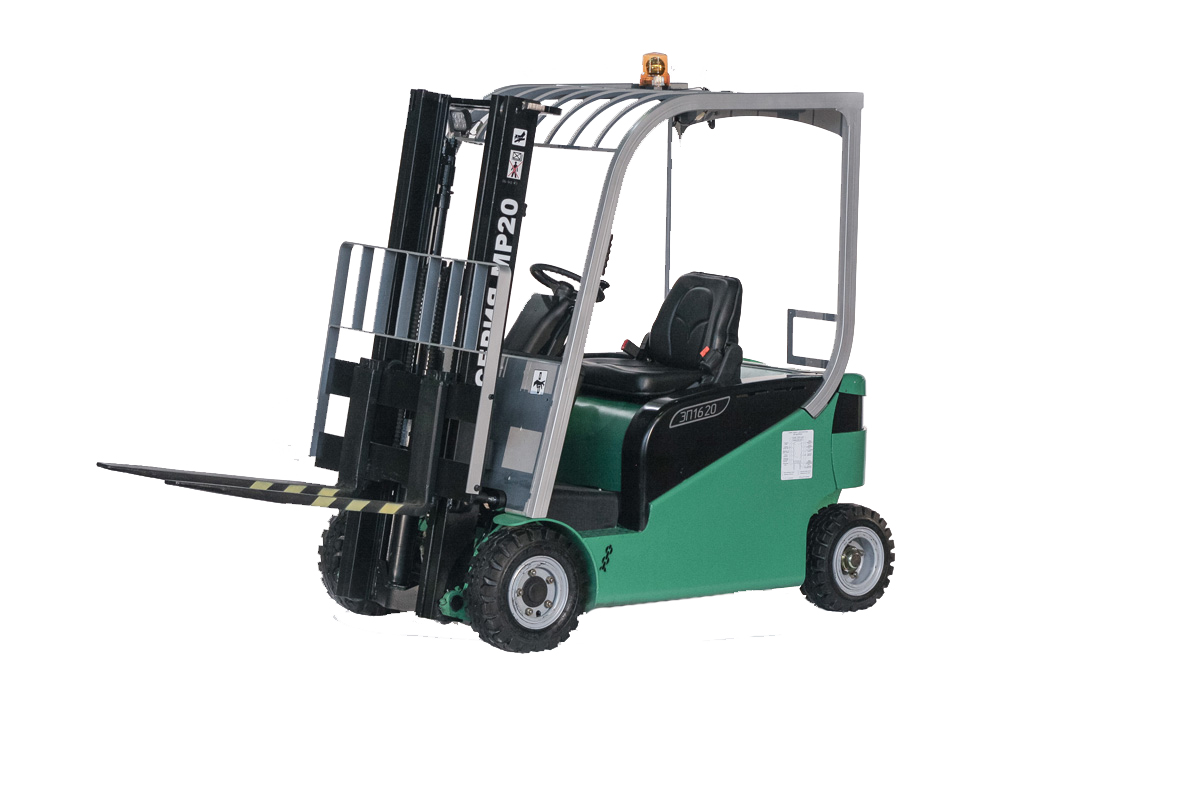

Electric forklift MR 20 series

Electric forklift MR 20 series

Electric forklift MR 20 series
Полное описание

Electric forklifts of the MR20 series are designed for moving and stowage of goods in open areas and in closed ventilated spaces: in depots, warehouses, freight storages, ship holds, railway cars and other places equipped with hard and smooth floor surfaces.

Operating costs:

Minimum operating costs are provided by the use of an asynchronous drive with a highly effective AC motor, an energy recovery system, and use of oil bath based brake mechanisms.

Security:

Good stability is due to the low-lying battery and a system for reducing cornering speed. The system of monitoring the presence of the operator in the workplace prevents inadvertent forklift activation.

Performance:

Use of the battery side loading / unloading system allows to reduce time for maintenance. High speeds of operations, increased cross-country ability, more negotiable slopes and much more are provided not only by modern asynchronous motors, but also by separate wheel drives.

Use:

The overall height of the loader allows to operate it in rooms with a height of 2.0 meters. The operator's choice of modes makes it possible to increase the efficiency of using the forklift.

Ergonomics:

Convenience of the forklift operator is provided by low footrest, rubberized handrail, flat floor, steering wheel and seat adjustment, cup holder, paper clip and much more. The rubber mount of the rear axle absorbs shocks and vibrations, increasing the comfort of operation.

Options:

  • increased comfort seat;
  • LED lighting;
  • battery with intelligent diagnostic system;
  • flashing light;
  • large range of additional attachments.

Specifications

Specification

ER - 1620

ER - 1820

ER - 2020

Nominal load capacity, kg

1600

1800

2000

Wheel base, mm

1481

Operational mode weight, kg

3100

3200

3300

Protector: superelastic (SE), pneumatic (PM)

SE; PM

SE

SE

Max. fork height, mm

2800; 3200

2800; 3200; 4500; 6000

Height, mm

не более 2150

Rail guard height, mm

1960

Length without fork, mm

2094

2130

2200

Fork length, mm

1000

Overall width, mm

1090

1160

Wheel base clearance, mm

127

Turning radius, mm

1730

1770

1820

Travel speed under load/without load, km/h

16/18

Fork lifting speed with load, m/sec

0,41

0,38

0,35

Fork lowering speed without load, m/sec

0,5

Passable inclination under load, %

14/18

Battery voltage/capacity, V/Ah

48/550

48/660; 48/750

48/660

48/750

Warranty, months/operating hours

24/2000
