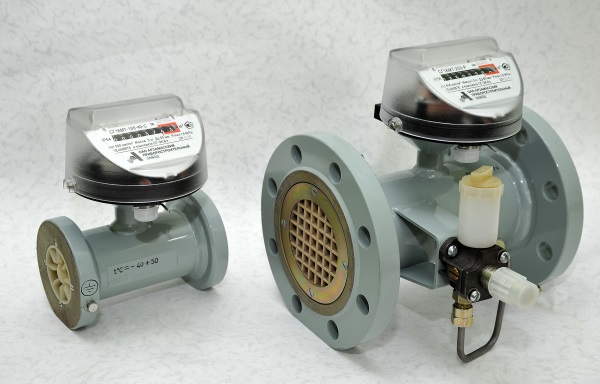

Gas meters SG16МТ, SG75MT

Gas meters SG16МТ, SG75MT

Gas meters SG16МТ, SG75MT
Полное описание

Gas meters SG16MT, SG75MT are designed for measuring the volume of smoothly changing flows of purified non-aggressive single and multicomponent gases (natural gas, air, nitrogen, argon, etc. with a density under normal conditions of not less than 0.67 kg/m3) when used in industrial and utility facilities and for accounting in commercial transactions.

The meter can be installed in the pipeline both horizontally and vertically with the gas flow direction both from bottom up and top down. It is necessary to install a filter to clean the gas of mechanical impurities before installing the meter (the size of the solid particles in the measured gas must not exceed 0.08 mm in the largest measured value).

The gas meters SG16MT, SG75MT have a low-frequency output (sealed contact), which allows it to be connected to the intrinsically safe circuit of the electronic corrector.
