Municipal vacuum sweeping machine MK-1500M2 is designed for power-operated cleaning of surfaces with a hard even paving (sidewalks, adjacent areas, etc.) from debris, dust and dirt. The machine sweeps waste, pneumatically transports (by suction) it into a collector to dump into a front loader scoop or container.

The machine consists of an in-house developed chassis with special equipment installed on it:

  • a sweeping system;
  • a vacuum system;
  • a waste collector;
  • a water system;
  • a hydraulic system;
  • an extra pick-up attachment for garbage collection from litter bins and hard-to-reach places;

The design of the MK-1500M2, in contrast to the MK-1500M, provides the possibility of installing replacement equipment, supplied as additional options:

  • the third tray-type manipulator (for cleaning at different levels, expansion of the sweeping strip);
  • distributor of solid anti-ice mixtures (sand, salt and others);
  • front blade;
  • front cylindrical brush

The change of the hopper-dust receptacle to the sand spreader is carried out without the use of lifting mechanisms.

Specifications

Value

Functional characteristics

Cleaning width, m

Up to 2,5

Technical productivity, m2 / hour

25 000

Bunker capacity, m3

2,0

Gross weight, kg, not more

3 700

Watertanks volume, l

380

Operating speed, km/h

10

Hinged and vacuum equipment

Trough brushes

with variable geometry parallelogram suspension depending on the road profile

Diameter of brushes (brush body), mm

500

Width of suction bell, mm

400

manual cleaning sleeve diameter, mm

150

Capacity of the vacuum installation, m3/h

13 600

Overall dimensions

Length (with brushes), mm

5 020

Width (with shifted brushes), mm

1 670

Height (by flashing beacon), mm

2 515

Minimum turning radius (according to the size of the machine), mm

3 875

Clearance (in the middle of the wheelbase), mm

210

Engine

Tyre

Diesel

Power, kW, at n = 2600 rpm

62

Cooling system

closed, liquid

Number of cylinders

4

Fuel consumption, l/h

8

Chassis

Wheel base, mm

2180

Track of front wheels, mm

1045

Колея задних колес, мм

1036

Track of the rear wheels, mm

hydraulic

Transmission

hydrostatic

Single-pedal control (forward, backward)

+

Steering

hydrostatic

Electrical equipment

Complete set of modern lighting equipment for this type of machine

+

Electric lock protection from unauthorized operation of electrical equipment of special equipment

+

Water level light alarm

+

Other

Gas exhaust neutralizer

+

Emission of harmful substances complies with

EURO 3

Warranty period, months

12

Additional "aggressive" tray manipulator brush

Extends the sweeping band. Allow to sweep the debris from surfaces that are above the level of the wheels (curb and adjacent sections of the sidewalk, benches, etc.)

Cleaning width – up to 2,6 m

The height of harvesting – up to 600 mm.

Snow-removing blade

Intended for harvesting freshly fallen snow.

Height of the snow cover – up to 250 mm.

Width of the harvesting at a turning angle of 8° - 1.35 m

Angle of rotation (right / left) – up to 30 °

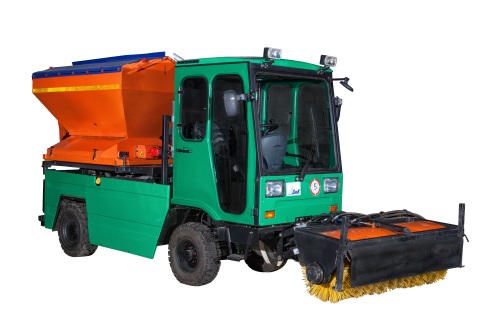

Cylindrical brush

Intended for sweeping of sidewalks in the winter.

Cleaning widthup to 1,25 m

Angle of rotation (right / left) – up to 24 °

Sand spreader

Used for strewing sidewalks, pedestrian areas with inert or chemical materials.

The volume of the bunker is 1,5 m3.
