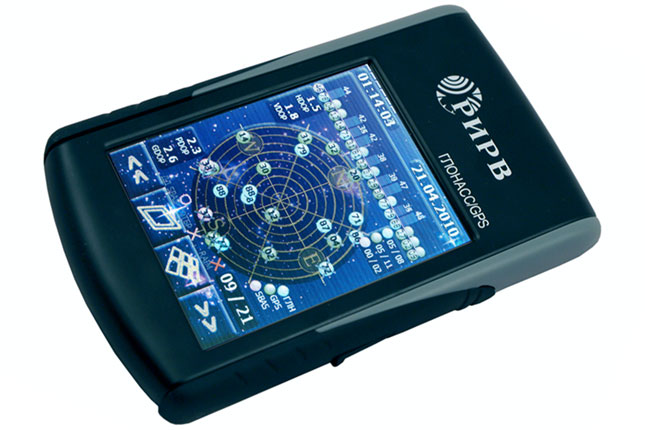

Consumer navigator PND “NT-1813”

Consumer navigator PND “NT-1813”

Consumer navigator PND “NT-1813”
Полное описание

Consumer navigator PND “NT-1813” works with GLONASS/GPS satellite navigation system signals and is designed to determine coordinates of the place, time, course, speed, as well as for the service of an individual user on the route at any time of the year and day.

PND “NT-1813” provides:

  • signal reception and complex processing of GNSS GLONASS / GPS and SBAS information;
  • determination of the location of the user;
  • calculation of motion parameters, solution to service problems, as well as determination of current time and date;
  • recording and display the passed route;
  • playback of audio / video files.

PND “NT-1813” can be used for pedestrian navigation and for vehicle traveling. Determination of the location of the mobile consumer is made by the navigator throughout the globe at any time of the year and day in the parking lot or in traffic with direct radio visibility of at least four NCA and when the signal characteristics correspond to GLONASS and GPS interface control documents.

Specifications

Receiver architecture

18 channels of reception of signals of standard accuracy of GLONASS, GPS, SBAS (with arbitrary signal distribution)

Average time of first determination, s, not more than:

- "hot" start

- "warm" start

- “cold” start

45

50

60

Graphic display options:

- permission

- a type

- the size

240х320

TFT

3,5”

Processor, MHz

frequency 624

Interface Type

USB 2.0

operating system

Microsoft Windows CE 6.0

RAM size, MB

128

The size of the built-in non-volatile (Flash) memory, MB

128

Type of expandable memory

SD/SDHC (до 16 Гб)

Battery type

li-ion

Rated voltage, V

3,7

Nominal capacity, mA / h

1800, allows for 3600

Time of continuous operation in the mode of maximum power consumption, h

Up fo 4

Terms of Use:

Operating temperature, ° С

from -20 to 55

Weight Dimension Characteristics

Weight kg, no more:

Dimensions, mm:

0,2

130х80х20
