Automated transmit/receive center of VHF range "SAPSAN"

Automated transmit/receive center of VHF range "SAPSAN"

Automated transmit/receive center of VHF range "SAPSAN"
Полное описание

PURPOSE

 The automated transmit/receive center of VHF range "SAPSAN" is designed to provide two-way radio communication and data transmission lines in the VHF band between the UATMS and the aircraft crews.

"SAPSAN" is produced in various designs that allow to place the equipment both in stationary facilities and in container-body type structures, thus providing both combined and spaced placement of the transmitting and receiving centers.

CONTENT

"SAPSAN" includes two half-sets of equipment in a "hot" reserve. Each of the half-sets includes radio receivers, radio transmitters, channel-forming equipment for communication with the ATC, additional radio equipment including antennas, combiners, distributors, surge arresters, etc., a remote control and monitoring system, a system of guaranteed power supply from chemical sources of current.

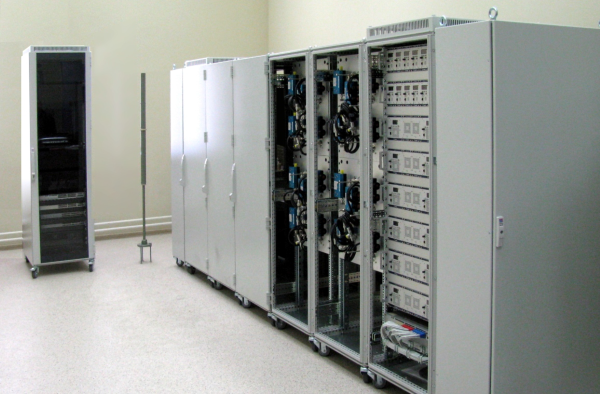

One half-set of equipment is placed in 4 19-inch cabinets. When placed in structures of container-body type, the equipment includes a gas fire extinguishing system, fire and burglar alarm, air conditioning and ventilation system, a subsystem of object signaling transmission to the ATC. The remote control and monitoring system is housed in a 19-inch cabinet on the ATC.

KEY FEATURES

  • when fiber-optic communication lines are used between the centers and the ATC, a completely digital information exchange is provided with voice messaging switching systems using the VoIP protocol in accordance with ED-137B;
  • when using wire communication lines, the output of the radio transmitters to the radiation mode can be carried out by a separate pair, by applying a DC signal with a voltage from + 12V to + 27V to the middle point of the transformer of the input path, with a variable frequency signal of 1020/2040 Hz;
  • compliance with the requirements of ETSI EN 301 841 to ground equipment of the VDL2 data line;
  • availability of a remote control and monitoring system within the APTA that provides monitoring and management of all basic parameters of the operation of the AAPC equipment using the SNMP protocol;
  • simultaneous, independent operation of up to 48 frequency channels of voice communication;
  • power supply of the APPTs from two three-phase power inputs with a voltage of 380V at a frequency of 50Hz;
  • ensuring the operability of all radio transmitting and radio-receiving devices of the APPTs within 2 hours from chemical power supplies from the APPTs in accordance with the requirements of FAP No. 116;
  • no need for prompt maintenance.

MAIN SPECIFICATIONS

SPECIFICATION

VALUE

Maximum number of radio channels

up to 48

Radio reservation

100% with automatic or manual selection

Radio facilities power supply redundancy

threefold

Reservation of information channels between centers and ATC when using fiber-optic communication lines for each half-set

100% with automatic selection

Frequency range

118 - 137 mHz

Frequency grid

25; 8.33 kHz

Transmitter power

adjustable from 5 to 50 W in 1 W increments

Receiver sensitivity

<1 μV

Communication mode

VDL2

Operating conditions of the equipment of the APPTs located outside the stationary or container-body spaces:

• ambient temperature

• atmospheric precipitation

• wind speed

• icing

from minus 500C to + 550C

up to 15 mm / min

up to 55 m / s

up to 30 mm

MTBF

>50 000 gours

Service life

15 years
