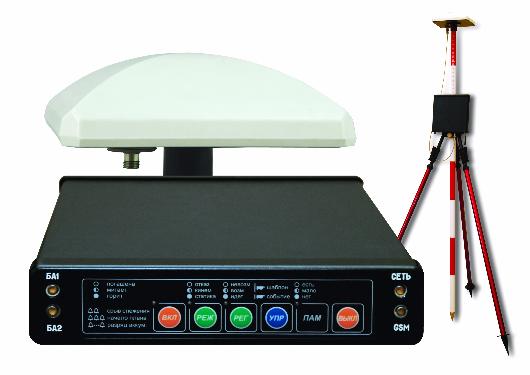

Satellite equipment "IZYSKANIE"

Satellite equipment "IZYSKANIE"

Satellite equipment "IZYSKANIE"
Полное описание

"Izyskanie", a two-frequency satellite navigation equipment of the global navigation satellite systems (GNSS) is designed to provide topographic and geodetic surveying, special construction and monitoring of the Earth's surface.

The equipment "Izyskanie" can be used in combination with a geodetic control-correcting station when conducting geodetic work for high-precision determination of coordinates of points on the earth's surface in real-time and post-processing modes.

The "Izyskanie" apparatus provides definition of coordinates of points of a terrestrial surface:

  • in real-time mode by using corrective information transmitted over the GSM channel from a control-correcting station;
  • in measurements post-processing mode by using information obtained from a control-correcting station or other geodetic receivers.

The equipment is designed to maximize the effectiveness of static and dynamic surveys and can be used for a variety of purposes, such as:

  • geodetic reference;
  • grid creation and densification;
  • building;
  • land surveying work;
  • engineering survey;
  • topographic survey;
  • land demarcation;
  • land cadastre and more.

Specifications

In real time, the mean square error for determining the parameters of the baseline vectors:

a) at a distance D of no more than 10 km, taking into account the preliminary set of measurements at the point of initialization for at least 10 min in “Static” mode, mm, not more than:

by plane coordinates and along the length of the baseline

10 + 1,5x10-6xD

by height

10 + 1,5x10-6xD

b) for each coordinate without initialization phase, if there is reliable correction reception available, mm, not more than:

by plane coordinates and along the length of the baseline

1

by height

2

In mean square error for determining the parameters of the baseline vectors measurements’ post-processing mode:

a) in "Statics" mode, at a distance D of no more than 5 km and at a distance D of no more than 30 km with the observation time not less than 60 minutes, mm, not more than:

by plane coordinates and along the length of the baseline

10 + 1x10-6xD

by height

10 + 1,5x10-6xD

b) for each coordinate in the "Stop-Go" mode at a distance D of not more than 5 km at the point of initialization and at subsequent points without interrupting phase measurements, mm, not more than: 20 + 2 x106xD

c) for each coordinate in the "Kinematics" mode, taking into account the preliminary set of measurements at the initialization point, mm, not more than: 20 + 2 x106xD

d) in the "Kinematics" mode at a distance of D not more than 100 km without the initialization phase, mm, not more than:

by plane coordinates and along the length of the baseline

0,5

by height

1

Supply voltage, DC, V:

10-30

Power consumption, W, typical:

3

Built-in communication equipment

GSM-900/1800, ability to connect a VHF radio

Electrical interfaces

RS-232C, USB, Bluetooth, PPS

Exchange rate, bit/s

up to 115200

Data logging rate, sec

from 1 to 60

Built-in Memory, MB

112

Time of continuous operation without recharging - up to 16 hours

Operating temperature, °С

From -30 to 50

Weight Dimension Characteristics

Weight, kg, not more than: Dimensions, mm:

· “Izyskanie” apparatus 1,6 208,5x187,5x40,0

· Antenna device 1 186,0x186,0x91,5
