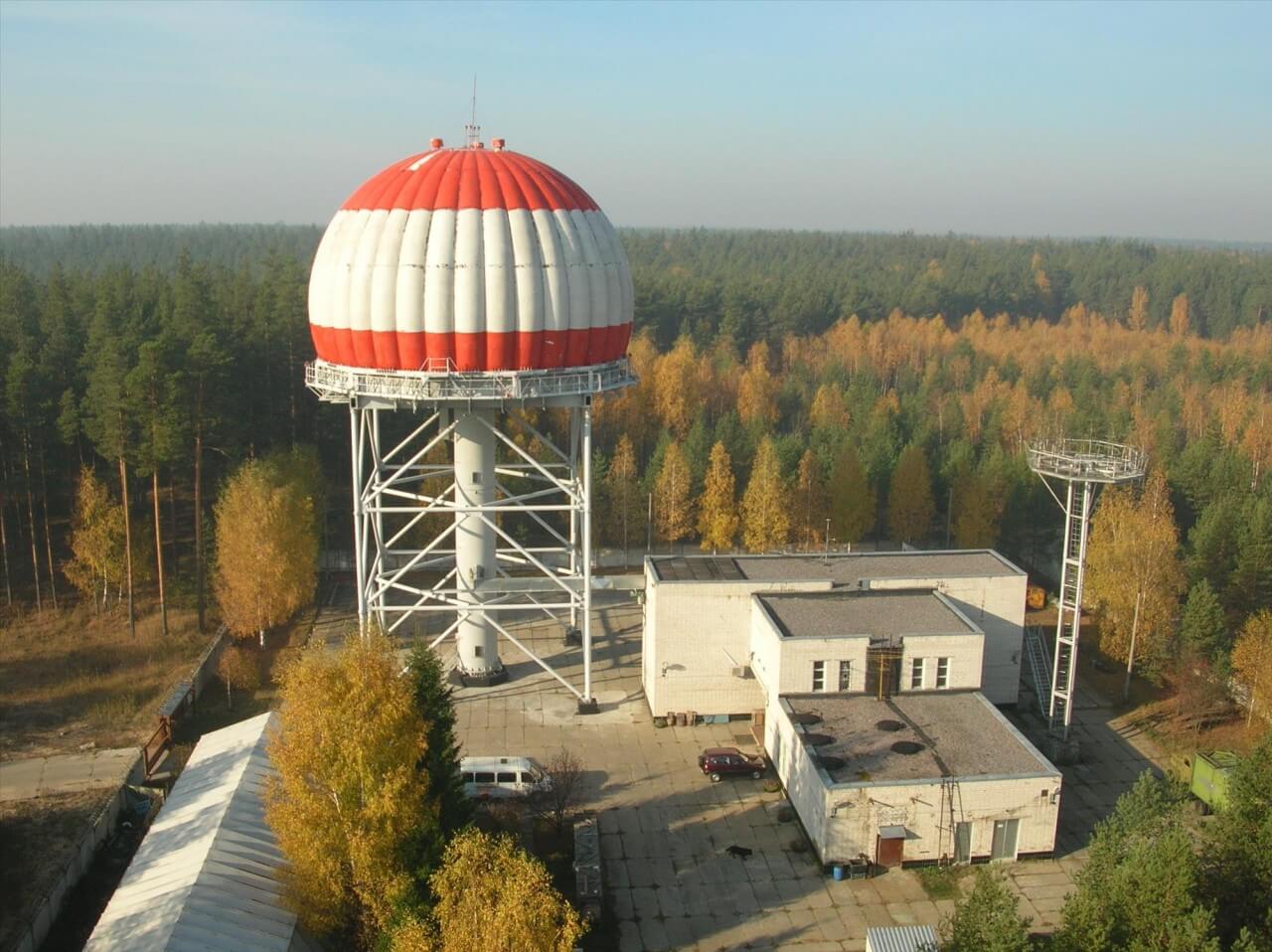

En route radar facility “Utes-T”

En route radar facility “Utes-T”

En route radar facility “Utes-T”
Полное описание

"Utes-T" en route radar facility is designed to control air traffic of aircraft on civil aviation routes.

The “Utes-T” facility includes:

  • a primary radar
  • a built-in secondary radar or an interface facility for an autonomous SSR (on customer's order)
  • equipment for processing and combining radar information from the PSR and the secondary radar

The primary surveillance radar of the "Utes-T" complex operates in L-band (23 cm) and is a highly stable radar complex built on the principle of true coherence. The structure of the facility and its construction are similar to the "Utes-A" airfield radar. The difference lies in the fact that the RLL of the "Utes-T" radar has other modes of operation and a more high powered transmitter, consisting of four output amplifier cabinets instead of two, as in the "Utes-A".

Specifications:

Radar coverage:

by range, km

by elevation, degrees

by altitude, km

360

up to 45

20

Accuracy of target location:

by range, m

by azimuth, min

50

6

Resolution:

by range, m

by azimuth, degrees

225

1,5

Data refresh rate, sec

10

Clutter suppression coefficient, dB

not less than 50

Quantity of tracked routes

not less than 400

Power consumption, kW

not exceeding 35

Average time to failure, hours

10000
