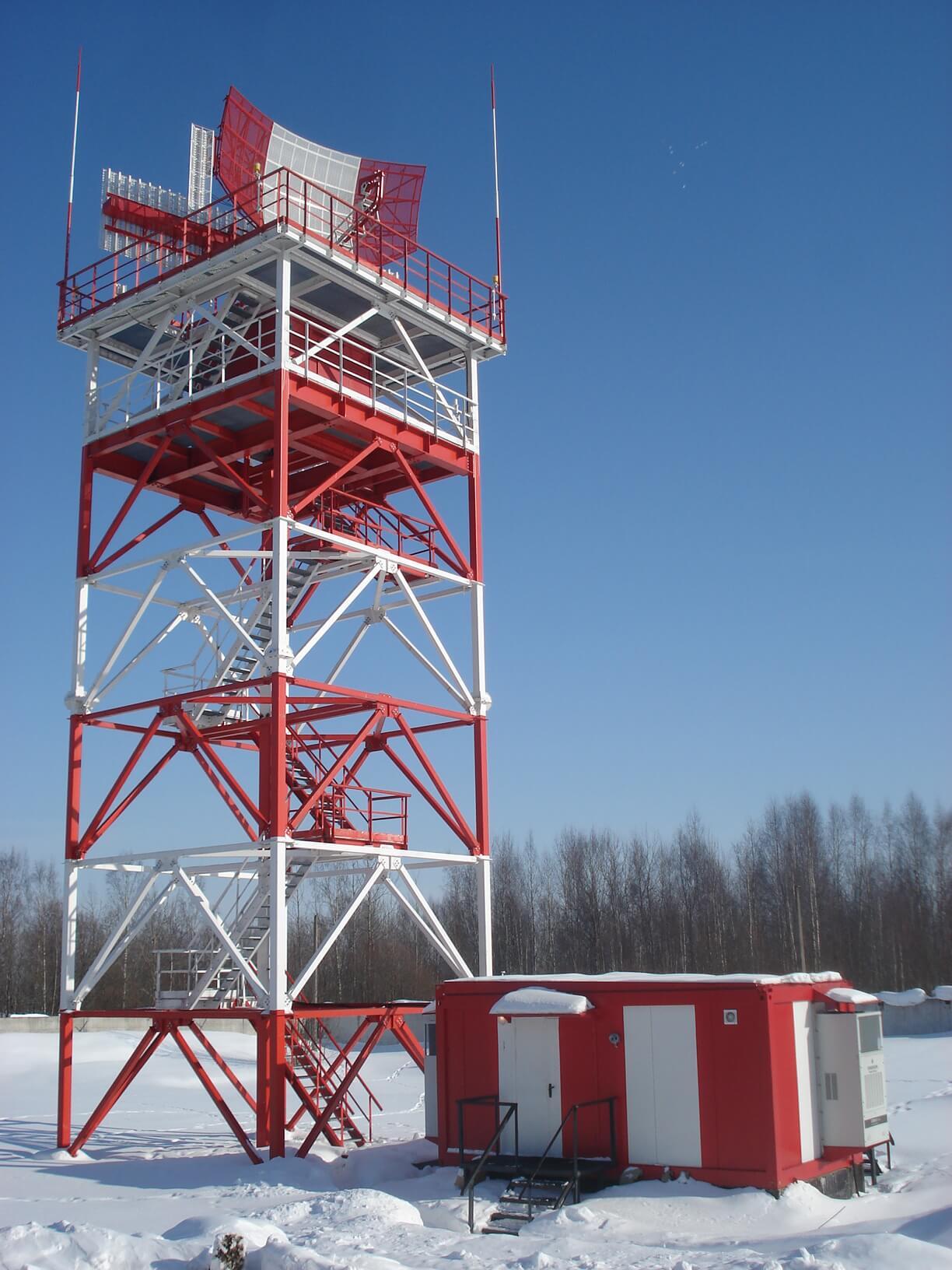

10-centimeter range Terminal area radar complex "Lira-A10"
Полное описание
The 10-centimeter range terminal area radar complex "Lira-A10" is intended for use as a source of radar information about current aerodrome air situation for automated and non-automated air traffic control systems.
The "Lira-A10" complex includes:
- a primary radar with the equipment for processing and combining radar information from the PSR and the SSR in order to issue radar information to the consumer;
- a built-in SSR of any type of or an interface facility for an autonomous secondary radar (on customer's order)
Specifications:
|
Frequency range, Mhz |
2700-2900 |
|
Radar coverage over an aircraft with ground speed between 40-1500 km/h |
|
|
By range, km |
|
|
PSR |
160 |
|
SSR |
360 |
|
By azimuth, degrees |
360 |
|
By elevation, degrees |
up to 45 |
|
By altitude, km |
10 |
|
Accuracy of target location |
|
|
By range, m |
50 |
|
By azimuth, min |
6 |
|
Data refresh rate, sec |
5 or 4 |
|
Clutter suppression coefficient, dB, at least |
50 |
|
Quantity of tracked routes |
not less than 400 |
|
Power consumption, kW |
not exceeding 15 |
|
Average time to failure, hours |
20000 |
