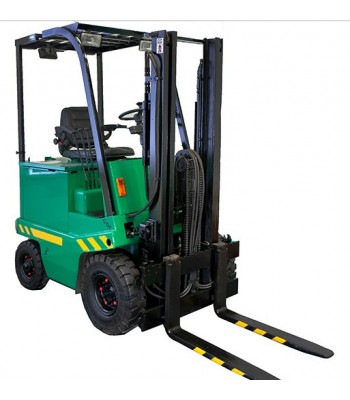

ER-103KAS electric forklifts
ER-103KAS electric forklifts are designed for moving and stowage of goods in open areas and in closed ventilated spaces: in depots, warehouses, freight storages, ship holds, railway cars and other places equipped with hard and smooth floor surfaces. Loaders are equipped with alkaline or acid batteries.
Specifications
|
Specification |
ER-103KAS |
|
Nominal load capacity, kg |
1 000 |
|
Mast / tilt angle of forks: forward / backward |
5°/9° |
|
Mast height in retracted position, mm |
2 130 (2 020*) |
|
Unsupported max. fork height, mm |
0 (1500*) |
|
Max. fork height, mm |
3300 (2000, 2900, 3200, 4500)* |
|
Mast height in extended position, mm |
3 770 (3 370*) |
|
Rail guard height, mm |
2 145 (2 065*) |
|
Overall length with fork, mm |
2 660 |
|
Fork length, mm |
800 |
|
Min. Turning radius, mm |
1 645 |
|
Travel speed under load/without load, km/h |
12/14 |
|
Carriage lifting speed: with/without load, m/s |
0,322/0,395 |
|
Carriage lowering speed: with load/without load, m/s |
0,4/0,5 |
|
Passable inclination under load, % |
14% |
|
Battery type: |
|
|
Acid: voltage/capacity, V/Ah |
48/400 |
|
Alcaline: voltage/capacity, V/Ah |
40/300 |
|
Operating temperature, С° |
- 25 ... + 40 |
|
Steering system |
Hydraulic booster |
